In today’s fast-paced manufacturing environment, precision, efficiency, and versatility are crucial. While traditional 3-axis CNC machines handle basic tasks, CNC 5 Axis machines have become the preferred solution for producing complex, high-precision parts. For manufacturers looking to gain a competitive edge, understanding the advantages of 5-axis CNC machining is essential.
In this article, we explore the top 11 benefits of CNC 5 Axis machines, applications across industries, and how to choose a reliable service provider. We will also highlight why upgrading your workshop with a CNC 5 Axis machine can transform your production capabilities.

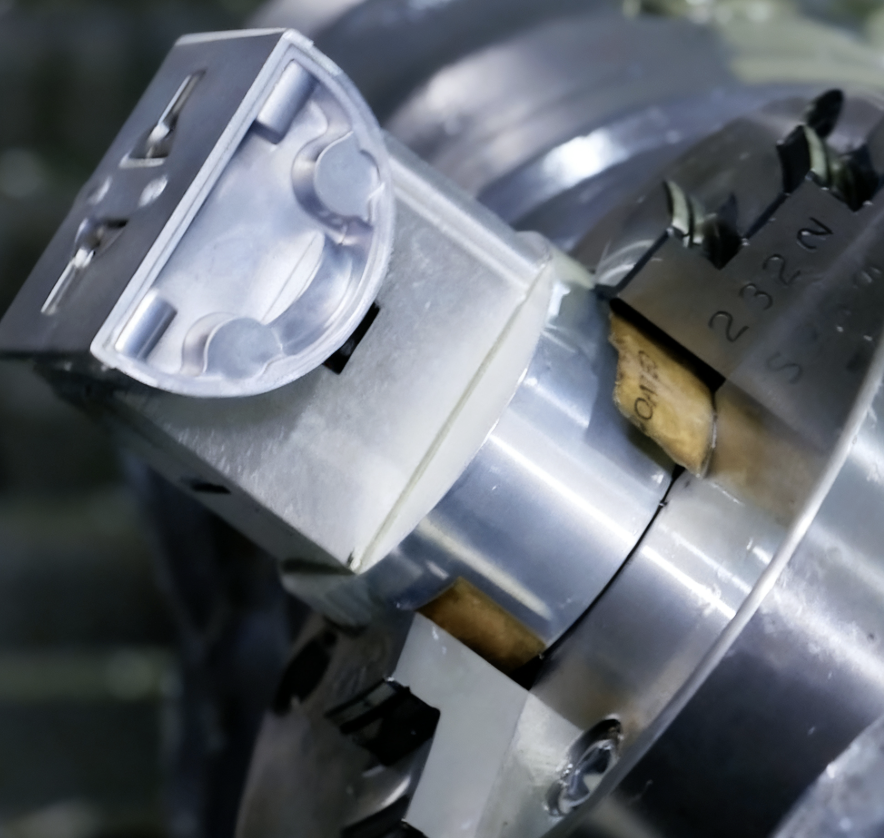

A CNC 5 Axis machine is an advanced type of CNC machine that moves either the cutting tool or the workpiece along five different axes. While a conventional 3-axis CNC machine operates along the X, Y, and Z axes, a 5-axis CNC machine adds two rotational axes — commonly referred to as the A-axis and B-axis.
This allows the tool to approach the part from virtually any angle, enabling highly complex machining in a single setup. Some 5-axis CNC machines combine tool movement along three axes and workpiece rotation along two axes, maximizing both flexibility and efficiency.
CNC 5 Axis machines provide unmatched precision, producing parts with tight tolerances and exceptionally smooth surfaces. This level of accuracy is critical in high-stakes industries like aerospace, automotive, and medical device manufacturing, where even minute deviations can compromise performance or safety.
By allowing the cutting tool to approach the workpiece from multiple angles, CNC 5 Axis machining reduces errors compared to conventional 3-axis CNC machines. This ensures that complex parts are machined correctly the first time, minimizing waste and rework.
The additional rotational axes of a CNC 5 Axis machine allow manufacturers to machine intricate and complex geometries that would be impossible or extremely time-consuming with 3-axis CNC machines.
Applications include:
Turbine blades and impellers with aerodynamic profiles
Custom aerospace components requiring precise curvature
Deep cavity molds, dies, and injection molding tools
By reducing the need for multiple machines or manual repositioning, 5-axis machining saves time, reduces errors, and ensures consistent part quality across batches.
Because a CNC 5 Axis machine can keep the cutting tool tangential to the workpiece at all times, it removes more material per pass. Coupled with the ability to complete operations in a single setup, this significantly reduces cycle times.
Faster production not only shortens lead times but also allows companies to respond quickly to urgent orders and market demands. The result is higher throughput, lower costs, and a competitive advantage in industries that value speed without compromising quality.
Unlike 3-axis CNC machines, which require multiple setups to access different faces of a part, CNC 5 Axis machines can often complete the entire machining process in a single setup.
Benefits include:
Minimization of human error during repositioning
Reduced labor costs associated with manual part handling
Streamlined workflow and improved production efficiency
This is particularly advantageous for large-scale or high-precision production runs, where consistent accuracy across multiple parts is essential.
By allowing the workpiece to be positioned closer to the cutting tool, CNC 5 Axis machines enable the use of shorter cutting tools. Shorter tools reduce vibration and chatter, resulting in exceptional surface finishes.
Industries such as aerospace, medical devices, and automotive benefit from this, as premium surface finishes reduce post-processing, polishing, and inspection time, saving both time and cost.
The extra axes on a CNC 5 Axis machine make it possible to drill and mill at complex angles or in hard-to-reach locations.
Typical applications include:
Deep cavities in molds that require precise, angled drilling
Curved surfaces on turbine blades or aerospace components
Multi-angle drilling and milling for high-precision assemblies
This advanced flexibility expands the possibilities for part design and allows manufacturers to produce components that were previously difficult or impossible with standard CNC machines.
Optimized cutting angles made possible by CNC 5 Axis machining reduce mechanical stress on tools. This means cutting tools experience less vibration and heat buildup, leading to longer tool life, fewer replacements, and more consistent machining results.
For machine shops, this translates into lower tooling costs and less downtime, while customers benefit from high-quality parts produced with reliable, repeatable processes.

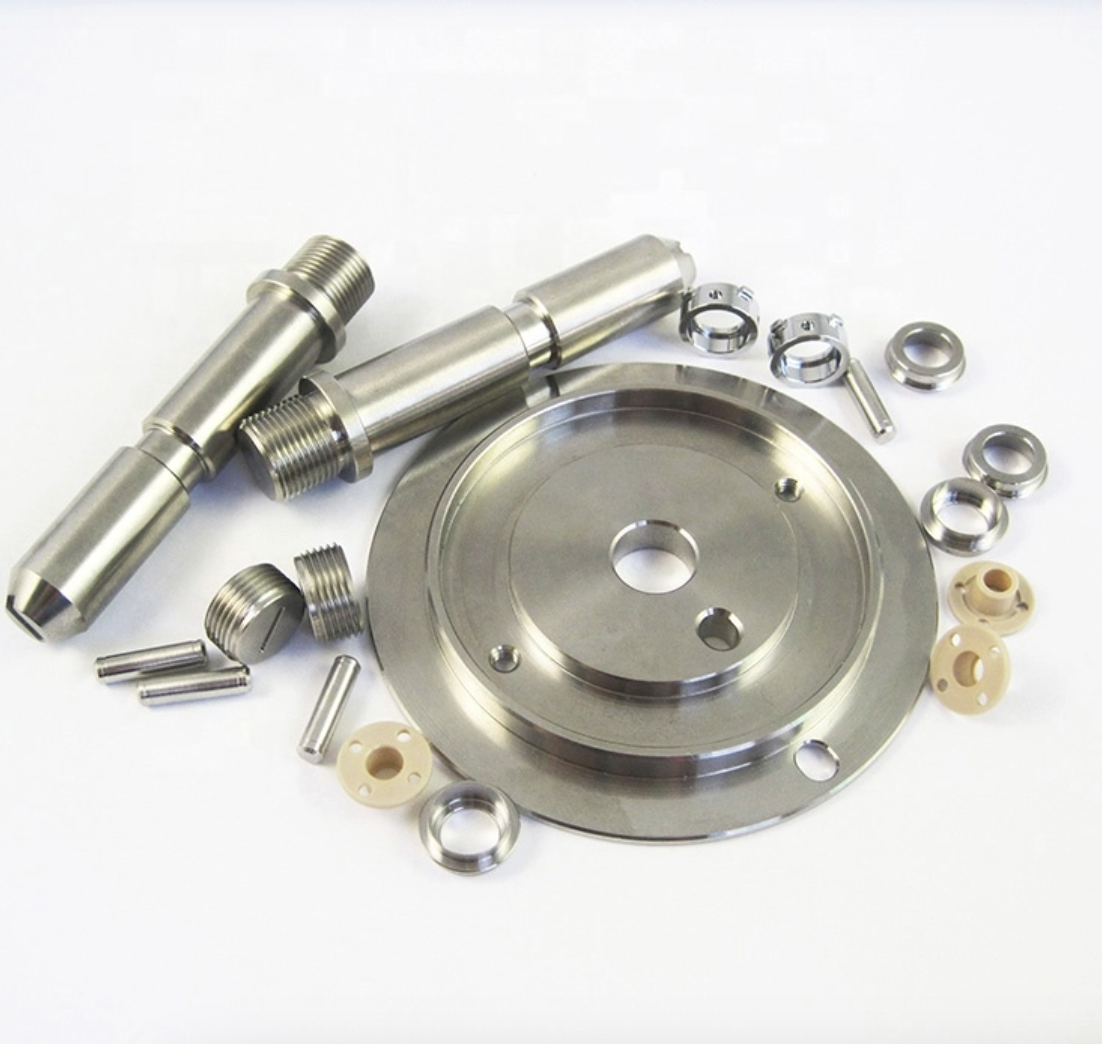

CNC 5 Axis machines can handle a wide variety of materials, making them suitable for diverse manufacturing needs. Common materials include:
Stainless steel, carbon steel, and tool steel
Aluminum, bronze, and brass
High-temperature alloys used in aerospace and automotive applications
This versatility allows manufacturers to use a single CNC 5 Axis machine for multiple projects, reducing the need for different types of equipment and expanding production capabilities.
By reducing the need for multiple setups and improving workflow efficiency, CNC 5 Axis machines significantly boost overall productivity. Machinists spend less time manually repositioning parts, allowing more components to be produced per shift.
This higher efficiency is particularly valuable for high-volume production or when tight delivery schedules must be met without compromising quality.
Although investing in a CNC 5 Axis machine may require a higher upfront cost, the long-term savings are substantial:
Reduced labor and setup costs
Fewer errors and less scrap material
Faster production and quicker return on investment (ROI)
Over time, the increased efficiency and reduced rework often make CNC 5 Axis machining a cost-effective solution for companies seeking both precision and high throughput.
Curved components, such as turbine blades, fins, or deep cavity molds, are difficult to machine with 3-axis CNC machines. With a CNC 5 Axis machine, the cutting tool maintains a consistent angle along curves, producing smooth, precise surfaces with minimal post-processing.
This capability is essential for high-precision industries like aerospace, automotive, and mold-making, where surface quality and part accuracy are critical.
To fully leverage the benefits of CNC 5 Axis machining, it’s important to work with a reliable service provider. Here’s what to look for:
High-Quality Equipment: Ensures precise and efficient operations.
Material Capabilities: Can handle all materials your project requires.
Cost and Lead Times: Transparent pricing with competitive turnaround.
Support and Consultation: Technical guidance for complex parts.
A: A CNC 5 Axis machine is an advanced type of CNC machine that moves the cutting tool or workpiece along five axes, including the standard X, Y, and Z linear axes, plus two rotational axes (A and B). This allows the tool to reach complex angles and produce highly intricate parts in a single setup.
A: While a 3-axis CNC machine can move a tool along X, Y, and Z axes, a CNC 5 Axis machine adds two rotational axes. This enables the machining of complex geometries, reduces setup times, improves surface finishes, and allows for drilling or milling at difficult angles that a 3-axis CNC machine cannot achieve.
A: Absolutely. By positioning the workpiece closer to the cutting tool, CNC 5 Axis machines can use shorter cutting tools, reducing vibration and chatter. This results in smoother, high-quality surfaces and often eliminates or reduces post-processing work.
A: When choosing a reliable 5-axis CNC machining service, ensure the provider has high-quality equipment capable of precise and efficient operations. Confirm that they can handle the specific materials required for your project. Look for transparent pricing and realistic lead times, and check that they offer technical support and consultation for complex parts. Working with an experienced and trustworthy service will help ensure optimal results.
In today’s competitive manufacturing environment, leveraging the full capabilities of a CNC 5 Axis machine can transform production processes, enabling higher precision, faster turnaround times, and the ability to create complex geometries that were once impossible with traditional 3-axis CNC machines. From superior surface finishes to reduced labor costs and improved productivity, the advantages of 5-axis CNC machining are clear for industries ranging from aerospace and automotive to medical device manufacturing.
For businesses seeking to maximize efficiency and quality in their machining projects, partnering with a trusted and experienced provider is essential. Shenzhen Honvision Precision Technology Co., Ltd. offers advanced CNC 5-axis machining services, equipped with state-of-the-art machines and a skilled team capable of handling a wide range of materials and complex components. By choosing Honvision, manufacturers can ensure precise, reliable, and cost-effective solutions tailored to their unique production needs.
