In modern manufacturing, CNC machines are essential tools for producing high-precision parts efficiently. Among the most common types are CNC 3 Axis machines, 4-axis, and 5-axis milling machines. Understanding the differences between these machines helps manufacturers, engineers, and hobbyists choose the optimal CNC machine for their projects, balancing cost, precision, and production speed.

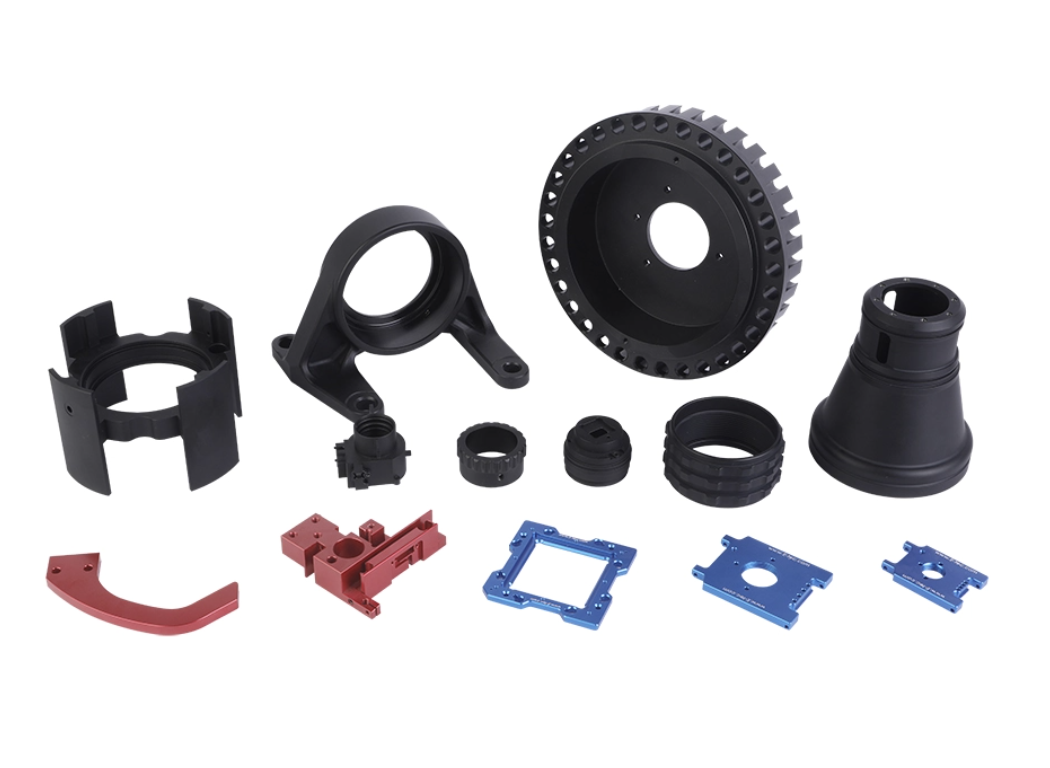

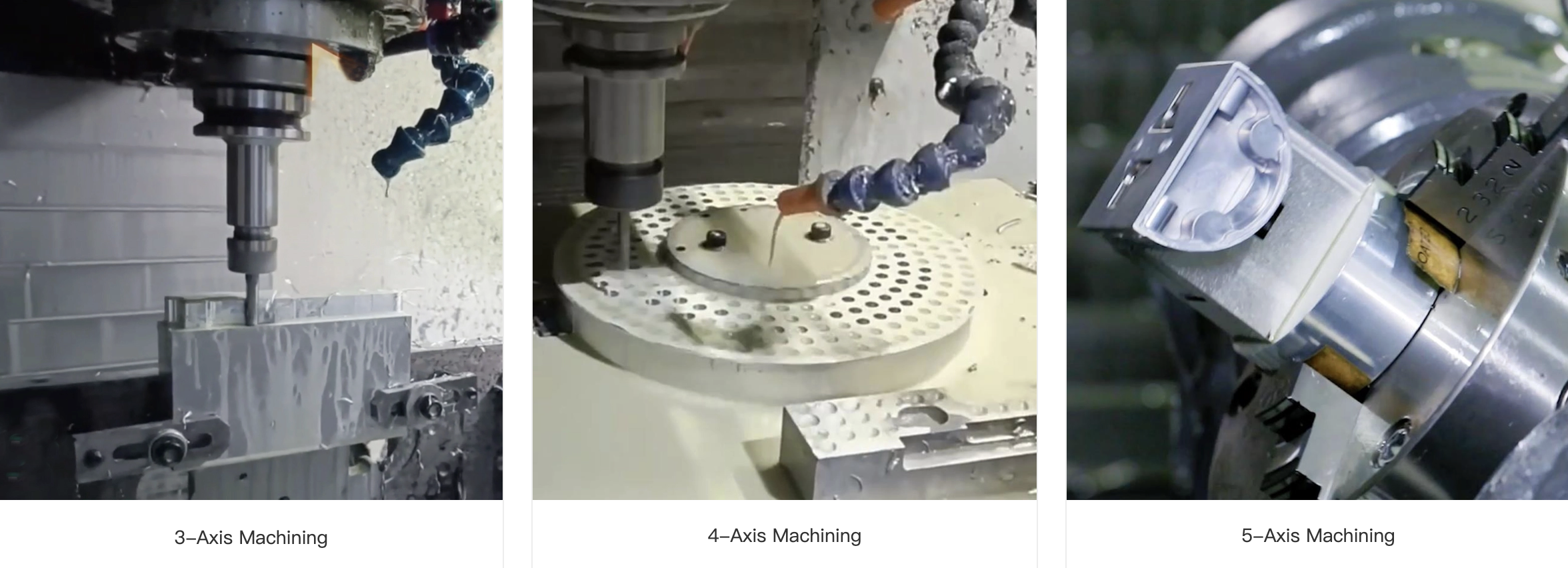

A CNC machine (Computer Numerical Control machine) automates material removal from a workpiece using a programmed cutting tool. CNC 3 Axis machines move the cutting tool along X, Y, and Z linear axes, making them ideal for flat parts, panels, and basic geometries. Multi-axis CNC machines, including 4-axis and 5-axis, add rotary axes that allow more complex geometries and curved surfaces.
A CNC 3 Axis machine is the most basic type of CNC machine and is widely used in manufacturing industries for producing simple to moderately complex parts. It moves the cutting tool in three linear directions:
X-axis: Side-to-side movement across the work table
Y-axis: Front-to-back movement across the work table
Z-axis: Vertical movement for depth control
This setup allows CNC 3 Axis machines to perform operations like milling flat surfaces, drilling holes, cutting key slots, threading, and producing basic 2D and 2.5D features.
Despite being the simplest CNC milling machine, CNC 3 Axis machines remain highly versatile and cost-effective, especially for shops focusing on low-volume production, prototypes, or parts with simpler geometries.
Affordable CNC solution: CNC 3 Axis machines are significantly cheaper to purchase and maintain than 4-axis or 5-axis CNC machines, making them ideal for small manufacturers or budget-conscious shops.
Ease of use: Programming a 3-axis machine is relatively straightforward. Operators can quickly learn how to use these machines without extensive training, which reduces labor costs.
Low maintenance requirements: With fewer moving parts than multi-axis machines, CNC 3 Axis machines require less frequent servicing, leading to reduced downtime.
Reliable precision for simple geometries: When used within their limitations, 3-axis CNC machines can produce highly accurate parts, especially when a single side or plane is being machined.
Flexibility in tooling: Standard end mills, drills, and slot cutters can be used for various materials, including aluminum, steel, plastics, and composites.
Single-side machining: Multi-sided parts require multiple setups, increasing the risk of alignment errors and precision loss.
Limited complex geometry capabilities: CNC 3 Axis machines cannot efficiently machine angled or highly contoured 3D surfaces, such as sloped features or undercuts.
Slower production speed for complex parts: Frequent re-fixturing and repositioning of the workpiece prolong the manufacturing process.
Higher risk of tool breakage on hard materials: The perpendicular approach of the cutting tool may accelerate wear on certain materials, reducing tool life.
Ideal use cases for a CNC 3 Axis machine include sheet milling, panel fabrication, enclosures, simple prototypes, and low-volume production with basic geometric features.
A CNC 4 Axis machine builds on the foundation of a 3-axis machine by adding a rotary axis (A-axis). This axis allows the workpiece to rotate, enabling multi-sided machining in a single setup and significantly improving efficiency.
Indexing 4-axis (3+1): The workpiece rotates to a fixed angle, then the machine mills using standard X, Y, and Z movement. Ideal for features that do not require simultaneous rotation.
Simultaneous 4-axis machining: The machine rotates the workpiece while cutting along X, Y, and Z axes, enabling the creation of arcs, helices, and angled features with fewer setups.
Multi-side machining: A 4-axis machine can handle up to four sides of a part in a single fixture, reducing setup time and improving accuracy.
High precision: Fewer setups mean fewer chances for cumulative errors, allowing for tighter tolerances across multiple faces.
Efficient machining of complex features: Curved surfaces, angled holes, and cylindrical cuts are easier and faster to achieve compared to a 3-axis machine.
Reduced labor and fixture costs: Eliminates the need for multiple fixtures or repositioning, which can be both time-consuming and expensive.
Higher cost than 3-axis CNC machines: The addition of a rotary axis increases the initial investment and maintenance requirements.
Speed limitations for highly complex parts: While faster than 3-axis for multi-sided components, simultaneous 4-axis machining is still slower than full 5-axis setups.
Requires trained operators: Operators must understand rotary axis programming and part orientation, which requires more skill than standard 3-axis operations.
Typical applications include camshafts, cylindrical parts, angled cut-outs, and medium-complexity components in aerospace, automotive, and mold-making industries.
CNC 5 Axis machines offer the ultimate flexibility by combining X, Y, Z linear movement with two additional rotary axes (A, B, or C). This allows the cutting tool to approach the workpiece from virtually any angle, making it suitable for highly complex and precision-critical parts.
Simultaneous 5-axis machining: All axes move together, enabling machining of intricate 3D surfaces, deep cavities, and curved geometries.
3+2 indexed 5-axis machining: The rotary axes operate independently, allowing precise positioning and machining of angled features without simultaneous movement.
Machines highly complex 3D geometries: Perfect for parts with undercuts, multi-plane curves, and complex aerospace or medical designs.
Reduced setups: Most multi-sided or highly angled parts can be completed in a single setup, reducing error accumulation and increasing throughput.
High precision and consistency: Achieves tighter tolerances compared to 3-axis or 4-axis machines due to single-setup machining.
Faster production for complex parts: Simultaneous movement of multiple axes reduces overall cycle time, especially for intricate parts.
Versatile material handling: Hard-to-machine metals like titanium or Inconel can be approached in a way that reduces tool wear.
High cost: CNC 5 Axis machines are expensive to purchase and maintain.
Complex programming requirements: Programming must account for multi-axis movement, which requires advanced CAM software and skilled programmers.
Operator expertise needed: Operators must be highly trained to leverage the full potential of 5-axis machining.
Potential for tool collisions: Requires careful simulation and planning to prevent crashes, unlike simpler 3-axis setups.
Typical applications include aerospace components, medical implants, automotive molds, and high-precision industrial prototypes.
| Feature | CNC 3 Axis Machine | CNC 4 Axis Machine | CNC 5 Axis Machine |
|---|---|---|---|
| Axes | X, Y, Z | X, Y, Z + A | X, Y, Z + 2 rotary |
| Multi-side Machining | Limited | Up to 4 sides | 5+ sides |
| Complexity | Simple parts | Medium | Complex 3D surfaces |
| Setup | Multiple | Single for most | Single for most |
| Cost | Low | Medium | High |
| Speed | Slower | Moderate | Fastest |
| Precision | Low | High | Highest |
Choosing the right CNC machine for your production needs is essential to maximize efficiency, maintain high-quality output, and control costs. Several key factors should be considered when deciding between a CNC 3 Axis machine, 4-axis CNC, or 5-axis CNC machine.
The complexity of the part is often the most important factor in selecting a CNC machine. For parts with simple geometry—such as flat surfaces, straight cuts, or basic holes—a CNC 3 Axis machine is usually sufficient. These machines are perfect for 2D and 2.5D features, such as panel milling or basic prototypes.
If the part includes angled surfaces, cylindrical features, or curved profiles, a 4-axis CNC machine is more suitable because it can rotate the workpiece around the A-axis, enabling multi-sided machining in a single setup. This reduces the need for multiple fixtures and minimizes errors.
For highly complex 3D geometries, such as aerospace components, intricate molds, or medical implants, a 5-axis CNC machine is typically required. The additional rotary axes allow the cutting tool to reach virtually any angle, enabling machining of deep cavities, undercuts, and complex 3D surfaces with high precision.
Budget is often a decisive factor. CNC 3 Axis machines are the most economical, making them ideal for small workshops, startups, or operations with limited investment capacity.
A 4-axis CNC machine represents a mid-range option, offering additional capabilities and efficiency improvements while requiring a moderate investment.
5-axis CNC machines are premium solutions. They provide unmatched flexibility, precision, and speed, but come with higher purchase, maintenance, and operational costs. Investing in a 5-axis machine makes sense for manufacturers handling complex, high-value parts.
Precision requirements play a significant role in CNC machine selection. Multi-axis CNC machines, such as 4-axis and 5-axis machines, can often complete complex parts in a single setup, reducing the cumulative error that occurs when multiple setups are needed.
In contrast, a CNC 3 Axis machine may require re-fixturing and multiple setups to machine multi-sided parts, which can compromise accuracy and increase the risk of misalignment. High-precision applications, especially in aerospace, medical, or mold-making industries, often demand multi-axis CNC solutions.
The type of material being machined also affects CNC machine choice. Certain hard or tough materials, such as titanium, stainless steel, or specialty alloys, can accelerate tool wear if machined on a 3-axis CNC machine due to perpendicular cutting forces.
4-axis and 5-axis CNC machines offer more flexible tool orientations, allowing operators to approach the workpiece at optimal angles. This reduces tool stress, prevents breakage, and improves surface finish. Multi-axis machines are therefore better suited for machining difficult-to-cut materials, saving time and reducing overall tool costs.
A: 5-axis CNC machines combine X, Y, Z linear movement with two rotary axes (A, B, or C), allowing the cutting tool to reach nearly any angle. Advantages include machining complex 3D geometries, high-speed production, single-setup precision, and the ability to work on multiple sides simultaneously. These machines are widely used in aerospace, medical, and mold-making industries.
A: Choose a CNC 3 Axis machine for simple parts, low-volume production, or limited budgets. It works well for basic flat surfaces, drilling, and key slots. However, it may require multiple setups for multi-sided parts, which can reduce precision.
A: Yes. 4-axis CNC machines are efficient for medium to high-volume production, especially when parts have features on multiple sides. By machining multiple sides in a single setup, they save time, reduce errors, and maintain tighter tolerances.
A: Yes, 5-axis CNC machines require skilled operators due to complex machine setup and programming. Operators need specialized training to fully utilize the machine’s capabilities. However, when operated correctly, these machines offer superior precision and efficiency.
Choosing the right CNC machine—whether a CNC 3 Axis machine, 4-axis, or 5-axis CNC milling machine—depends on factors such as part complexity, production volume, budget, precision requirements, and material considerations. Each type of machine has its unique strengths: 3-axis machines are cost-effective and ideal for simple geometries, 4-axis machines improve efficiency for angled or cylindrical parts, and 5-axis machines deliver unmatched precision for complex 3D components.
