In today’s competitive manufacturing industry, precision, efficiency, and repeatability are more important than ever. This is where a CNC lathe machine becomes indispensable. Designed to automate traditional turning operations, CNC machines allow manufacturers to produce high-quality cylindrical parts with minimal human intervention and exceptional accuracy. From automotive shafts to aerospace components and medical instruments, the versatility of CNC lathe machines has made them a cornerstone in modern production facilities.
Whether you’re a seasoned machinist, engineer, or someone exploring the world of advanced manufacturing, understanding the technology, components, types, and specifications of CNC lathes is crucial for making informed decisions and optimizing production workflows. In this article, we will provide a comprehensive guide covering everything you need to know about CNC lathe machines, including their working principle, main components, types, specifications, applications, and frequently asked questions.
A CNC lathe machine is a computer-controlled turning machine that automates the cutting, drilling, facing, threading, and boring of materials such as metal, plastic, and composites.
Unlike manual lathes that rely on operator skill, CNC lathes use digital control systems to execute pre-programmed commands. The result is a production process that’s faster, safer, and capable of achieving consistent tolerances across thousands of identical parts.
CNC machining is a form of subtractive manufacturing, meaning it removes material from a solid workpiece to create the final shape. The CNC control system acts as the brain, interpreting G-code commands that define tool movements, spindle speed, feed rate, and cutting depth.
The CNC lathe machine rotates the workpiece on its spindle, while cutting tools mounted on a turret or carriage shape it according to programmed specifications. Once the setup and code are complete, the system performs each operation automatically, ensuring precision and minimizing human error.
While both are types of CNC machines, their operation differs:
A CNC lathe machine spins the workpiece while the cutting tool remains stationary.
A CNC milling machine, on the other hand, keeps the workpiece stationary and rotates the cutting tool.
Lathes excel in round or cylindrical components, while mills are ideal for flat or irregular surfaces.
Each component of a CNC lathe machine contributes to its precision and efficiency. Understanding these parts helps operators and engineers maintain performance and optimize production.
The headstock houses the spindle, the component responsible for rotating the workpiece. It includes the drive motor, speed control mechanisms, and gear systems. The headstock’s design determines the swing capacity—the maximum diameter of material that can be machined.
The spindle is the rotating axis that drives the workpiece. It is equipped with a chuck, which securely holds the material during machining.
Different types of chucks (three-jaw, four-jaw, collet) allow versatility for various workpiece shapes and materials. The spindle speed is adjustable, allowing optimal cutting conditions for both soft and hard materials.
Located opposite the headstock, the tailstock supports the free end of the workpiece during machining. It helps prevent vibration and ensures dimensional accuracy, especially for long or slender materials. The tailstock can hold live centers, drill chucks, or other attachments.
The lathe bed serves as the foundation of the CNC machine. Made from cast iron or alloy steel, it ensures rigidity and stability. The precision-machined ways on the bed allow smooth movement of the carriage and tailstock, maintaining alignment and reducing vibration.
The tool turret (or tool post) holds multiple cutting tools and allows for automatic tool changes during machining. This feature boosts productivity, enabling the CNC lathe machine to perform several operations—like turning, facing, threading, and boring—without manual intervention.
The carriage moves the cutting tool along the longitudinal axis of the workpiece, while the cross slide controls lateral movement. Together, they provide the precise control necessary for accurate cutting operations.
This is the brain of the CNC machine. It interprets the G-code commands, manages spindle speeds, controls feed rates, and monitors real-time performance. Modern control systems from Fanuc, Siemens, or Mitsubishi offer intuitive touch interfaces, real-time diagnostics, and integrated safety features.
Machining generates heat and friction. The coolant system circulates fluid to reduce temperature, prevent tool wear, and remove chips from the cutting area—crucial for extending tool life and ensuring superior surface finish.
Modern manufacturing relies heavily on different types of CNC lathe machines, each designed for specific production needs. Understanding these categories helps engineers and machinists choose the most efficient CNC machine for their applications.
The 2-axis CNC lathe machine is the most common and cost-effective type, perfect for performing basic turning operations such as facing, threading, boring, and grooving. It operates along the X and Z axes, allowing precision machining of cylindrical parts. These lathes are widely used in general metalworking, prototyping, and small-batch production, where simplicity and reliability are key.
Multi-axis CNC lathes are advanced CNC machines that can move the cutting tool in three or more directions simultaneously. This capability enables the machining of complex geometries and intricate contours without multiple setups. A 5-axis CNC lathe machine, for example, can perform milling, drilling, and turning in a single operation — significantly improving accuracy and reducing cycle time. These systems are commonly found in aerospace, automotive, and medical device manufacturing.
Swiss-type CNC lathe machines are highly specialized tools designed for producing small, high-precision components. They use a sliding headstock and a guide bushing to support the workpiece close to the cutting tool, minimizing deflection and vibration. This configuration makes them ideal for delicate parts in industries such as electronics, medical instruments, and watchmaking. Swiss lathes are known for their ability to maintain tight tolerances, even when machining extremely fine details.
Vertical CNC lathe machines, also known as VTLs (Vertical Turning Lathes), are engineered to handle large, heavy, and asymmetrical workpieces that would be difficult to mount on a horizontal spindle. With the spindle oriented vertically, gravity helps stabilize the part during machining. These lathes are commonly used for turbine casings, brake drums, wheel hubs, and industrial valves. Their rigid structure and strong clamping make them ideal for high-torque cutting operations.
Horizontal CNC lathes are the most widely used type of CNC machine due to their versatility and ease of setup. The spindle is mounted horizontally, allowing chips to fall away naturally, which improves cooling and tool life. These lathes can handle a broad range of part sizes and materials — from aluminum and brass to hardened steel. They are used in industries ranging from automotive and energy to defense and general manufacturing, offering an excellent balance of speed, accuracy, and production efficiency.
| Type of CNC Lathe | Description |
|---|---|
| 2-Axis CNC Lathes | Ideal for basic operations like facing, turning, and threading. |
| Multi-Axis CNC Lathes (3-, 4-, or 5-Axis) | Allow tools to move in multiple directions simultaneously, producing complex shapes in fewer setups. |
| Swiss-Type CNC Lathes | Used for high-precision small components in industries such as medical and electronics. Feature a sliding headstock and guide bushing for exceptional accuracy. |
| Vertical CNC Lathes (VTL) | Designed for large, heavy workpieces like turbine casings and automotive flywheels. Spindle is oriented vertically to handle significant weight. |
| Horizontal CNC Lathes | Most versatile and widely used configuration, suitable for a wide range of parts and production volumes. |
When selecting a CNC lathe machine, consider these important specifications:
Swing Over Bed: Maximum diameter that fits the lathe.
Distance Between Centers: Determines the maximum part length.
Spindle Bore and Speed Range: Affects cutting efficiency and workpiece compatibility.
Tool Turret Capacity: Number of tools available for automatic selection.
Feed Rate and Cutting Speed: Influences material removal rate and surface quality.
Control System: Precision, user interface, and software compatibility.
These factors directly affect machining performance, precision, and production throughput.
| Specification | Description |
|---|---|
| Swing Over Bed | Maximum diameter that fits the lathe. |
| Distance Between Centers | Determines the maximum part length. |
| Spindle Bore and Speed Range | Affects cutting efficiency and workpiece compatibility. |
| Tool Turret Capacity | Number of tools available for automatic selection. |
| Feed Rate and Cutting Speed | Influences material removal rate and surface quality. |
| Control System | Precision, user interface, and software compatibility. |

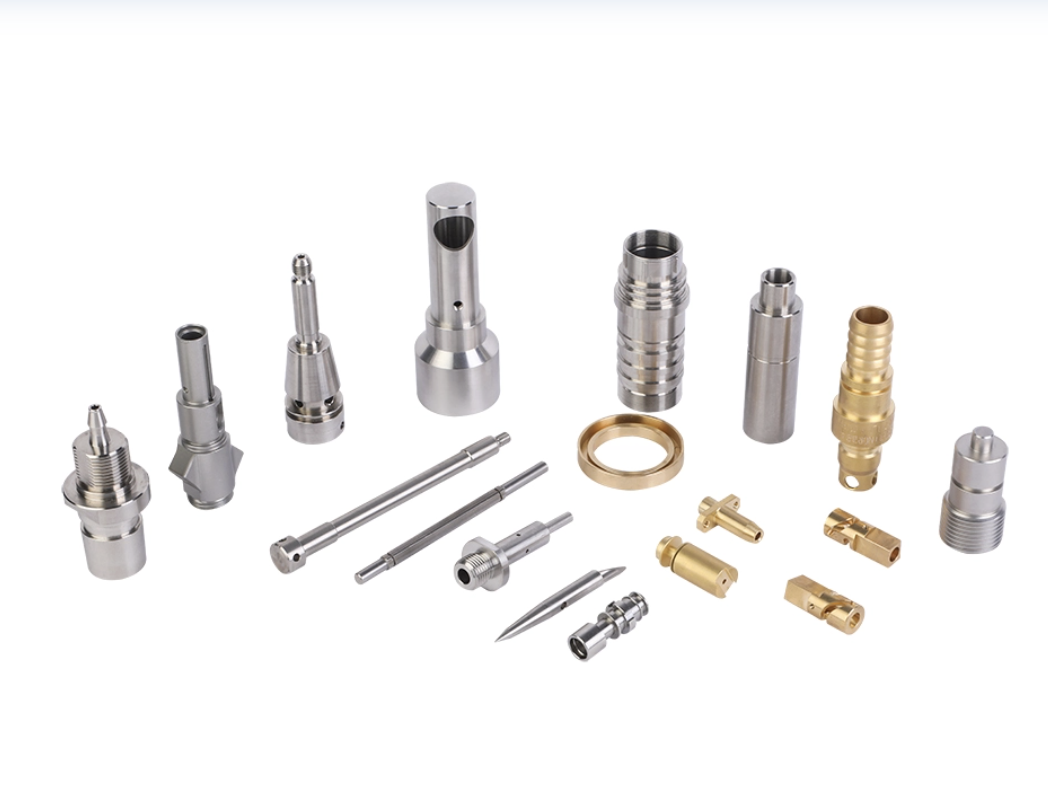

CNC lathes are used in a wide range of industries, including:
Automotive: Shafts, gears, bushings, and pistons
Aerospace: Turbine blades, housings, and connectors
Medical: Surgical instruments and implants
Oil & Gas: Valves, couplings, and pipeline components
Electronics: Enclosures and precision connectors
General Manufacturing: Custom prototypes and high-volume parts
Their ability to maintain micron-level tolerances makes CNC lathe machines indispensable in industries that demand extreme accuracy.
A CNC lathe machine automates the traditional turning process to create perfectly shaped cylindrical parts with exceptional accuracy and consistency. It eliminates manual errors and increases production efficiency across various industries.
A CNC lathe operates by rotating the workpiece while computer-controlled cutting tools move along precise programmed paths. These paths are defined by G-code instructions, allowing the CNC machine to perform operations such as facing, threading, drilling, and contouring with minimal human intervention.
Modern CNC lathe machines can process a wide range of materials, including metals (steel, aluminum, brass, copper), engineering plastics (nylon, PEEK, ABS), and even composites or ceramics for specialized applications. The flexibility of the CNC system allows easy adjustments for different hardness levels and surface finishes.
A CNC lathe focuses mainly on turning operations, while a CNC turning center is an upgraded version equipped with additional axes, automatic tool changers, and milling functions. In other words, all turning centers are CNC lathes, but not all CNC lathes are turning centers.
With proper care and maintenance, a high-quality CNC lathe can deliver reliable performance for 15–25 years or longer. Factors such as workload intensity, environmental conditions, and operator skill significantly impact machine longevity.
CNC lathe machines have revolutionized the way manufacturers approach precision machining, offering unparalleled accuracy, productivity, and versatility across industries. Understanding the main components, types, and specifications of a CNC lathe machine is essential for selecting the right equipment for your production needs and ensuring consistent high-quality output.
At Shenzhen Honvision Precision Technology Co., Ltd., we specialize in providing high-performance CNC machines tailored to diverse industrial applications. From standard 2-axis lathes to advanced multi-axis and Swiss-type CNC lathes, our solutions are designed to meet the demanding precision and efficiency standards of today’s manufacturing world. Partnering with us ensures that your facility is equipped with reliable, cutting-edge CNC lathe machines that maximize productivity and maintain exceptional quality in every component produced.
Take the first step toward optimizing your manufacturing process—explore our range of CNC lathe machines and experience the precision and performance that Shenzhen Honvision Precision Technology Co., Ltd. can deliver.
